The Lexus of Ebikes-The Look of Luxury

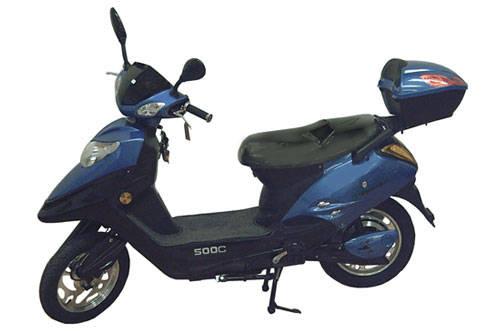

The Challenger RSV is one of a new generation of Veloteq electric bicycles. It represents the culmination of ebike and motorcycle technologies brought together to give you the smoothest and safest ride on the planet. They emit zero pollution but are amazingly inexpensive to own and operate. It retains the large bright dual headlights of the 2006 model combining them with new, larger rear signals to insure that you will be easily seen while riding at night. Advanced technology suspension systems and design insure smooth riding and maneuvering while reducing frame stress. Veloteq ebikes are built to last.


•500D RSV High Output 500W Electric Bicycle, 48V System, ECVT Transmission
•Pedal or power on demand - pedals removable for storage
•Maximum speed allowed by law in US and Canada-20 mph/32 km/h >50 miles-80 km 48V system standard range, without pedal assist, and great on hills
•High low end torgue for hill climbing and fast getaways
•Dynamic Power Regeneration recharges the power supply whenever the ebike is in motion while not using power such as coasting and braking
•A-arm front suspension fork for better control and handling on curves and reduced fork stress
•Vertically oriented minimum trail distance rear suspension for greater stability
and less frame stress
•Advanced cushioned drum brakes for smooth stops
•Fully automatic self activated cruise control with automatic brake shutoff
•Accurate speedometer/power meter with odometer
•High level audible alarm system with remote control
•Digital rear wheel and motor lock completely disables motor when engaged
•Fully adjustable side view mirrors and clear viewing distance
•Scratch-proof baked enamel HI-GLOSS paint finish, no waxing required.
•Underseat storage and rear cargo carrier included
Safety features include:
• large headlight and tail light, turn signals
• horn with audible alarm while turning
• wide rear view mirrors
• heavy duty kickstand
• Smart charger-CE Class
• automotive type cushioned brake system
• back-lighted instrument panel for night time operation
• digital rear wheel and motor lock cannot be bypassed or deactivated without key
• Scootalerttm Anti-theft Alarm System with remote control


Specifications: Dynamic Power Regeneration supplies power to the power supply while coasting downhill, on level ground, or braking whenever power is not being consumed by the motor.
Model: Low Power Electric Bicycle Brake System: Front/Rear cushioned automotive drum*
Electric Motor: 500W/48V Brushless DC PWM 3-phase Stopping Distance: <8'@19mph (<2.5m@30km/h)*
Torque/RPM: Max. 19.5Nm@290rpm-7.2Nm@520rpm Safety Features: Right/Left rear view mirrors, horn
Magnet Assembly: Neodymium/Boron (NIB) Lights: headlight, tail light, turn signals, wheel reflectors
Battery Type: UL Listed VRLA Spill Proof Colloidal Sealed Anti-theft Alarm: High level audible signal with remote
Battery Supply: 4 x 20Ah @ 5 hr. rate Rear Wheel/Motor Digital Lock (disables all functions)
Power Supply Wt.: 62 lbs ( 28kgs) Load Capacity: 330 lbs (150 kgs)*
Recharge Times: >400@80% discharge rate Compliance: CPSC, CMVSA, UL, CE, CCC
Charger: 48VDC/1.8A Smart Charger, CE type listed Vehicle size: 70"L x 25"W x 45H" (178 x 64 x 114cm)
Dynamic Power Regeneration Seat Height: 31.5" (80cm)
Rim Diameter: 16” (456mm) Carton size: 71"L x 19"W x 34"H (179 x 47 x 86cm)
Tires: 16x3.0 Rubber/Nylon O.D. 17.75 in. (45 cm) Net Vehicle Wt.: 106 lbs ( kgs) without Power supply
Speed: Max. 20 mph (32 km/h) Gross Vehicle Wt.: 167 lbs (76 kg) w/Power supply
Range:=>50 miles@12mph (=>80km@18km/h) Shipping Wt: 121 lbs (55kgs) (PSU shipped separately)
Degree of Climb: 20o grade Shipping Wt. : 48V20Ah PSU): 63 lbs ( 28.5kgs)
